Zvezda 1/72

The Mikoyan-Gurevich MiG-23 (Russian: Микоян и Гуревич МиГ-23; NATO reporting name: Flogger) is a variable-geometry fighter aircraft, designed by the Mikoyan-Gurevich design bureau in the Soviet Union. It is a third-generation jet fighter, alongside similar Soviet aircraft such as the Su-17 "Fitter". It was the first Soviet fighter to field a look-down/shoot-down radar, the RP-23 Sapfir, and one of the first to be armed with beyond-visual-range missiles. Production started in 1969 and reached large numbers with over 5,000 aircraft built, making it the most produced variable-sweep wing aircraft in history. The MiG-23 remains in limited service with some export customers.

The basic design was also used as the basis for the Mikoyan MiG-27, a dedicated ground-attack variant. Among many minor changes, the MiG-27 replaced the MiG-23's nose-mounted radar system with an optical panel holding a laser designator and a TV camera.

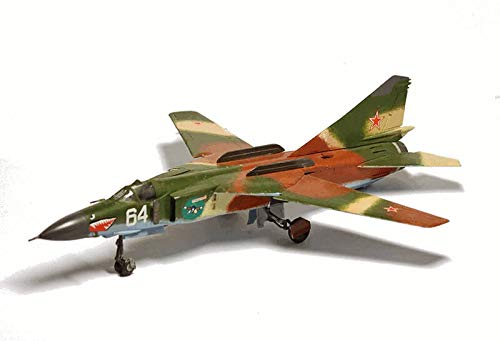

MiG-23MLD

("Flogger-K", Model 23-18) The MiG-23MLD was the ultimate fighter variant of the MiG-23. The main focus of the upgrade was to improve maneuverability, especially during high AoA, which was identified as the MiG-23M/ML's chief shortcoming. The pitot boom was equipped with vortex generators, and the wing's notched leading edge roots were 'saw-toothed' to act as vortex generators as well. The flight-control system incorporated the SOS-3-4 synthetic stick-stop device/signals limiter being used on the MiG-29 to improve handling and safety in high-AoA maneuvers. A strengthening of the wing pivot allowed the addition of a fourth wing sweep position of 33°, which was intended to reduce turn radius and allow for rapid deceleration during dogfights. However, with the wings at the 33° position, the MiG-23MLD was much more difficult to handle and suffered from poor acceleration. Moving the wings to this position was primarily reserved for experienced MiG-23 pilots, while combat manuals continued to emphasize the 45° position.

Significant improvements were made in avionics, with the incorporation of the Sapfir-23MLA-II (N008) radar which featured greater range, reliability, ECM resistance and improved modes for look-down/shoot-down over rough terrain. The radar also featured a close-in fighting mode with vertical-scan capability covering a narrow sector in front of the fighter. Against a bomber-sized target operating at medium to high altitudes, the Sapfire-23MLA-II had a maximum detection range of 70 km (43 mi). Other improvements included the SPO-15L Beryoza radar warning receiver, A-321 Klystron digital tactical radio navigation/automatic landing system, SAU-23-18 automatic flight control system, and SARP-12-24 crash-resistant flight recorder. Survivability was improved with a pair of six-round downward-firing chaff/flare dispensers mounted in the underfuselage centerline pylon, complemented by the two thirty-round upward-firing BVP-50-60 chaff/flare dispenser.

No new-build "MLD" aircraft were delivered to the VVS, as the more advanced MiG-29 was about to enter production. Instead, all Soviet "MLD"s were former "ML/MLA" aircraft modified to "MLD" standard, with 560 examples being converted at three VVS maintenance facilities in Kubinka, Chuhuiv and Lviv from May 1982 to May 1985. As with earlier MiG-23 versions, two distinct export variants were offered. Unlike Soviet examples, these were new-build aircraft, though they lacked the aerodynamic refinements of Soviet "MLD"s; 16 examples were delivered to Bulgaria, and 50 to Syria between 1982 and 1984. These were the last single-seat MiG-23 fighters made.
